ALT-5CW0

ALT-5CW0

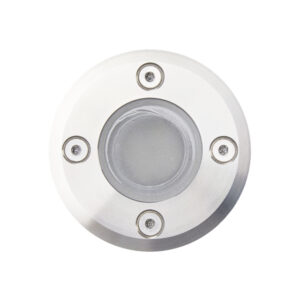

MINI ALTEA DEKO, wall and floor recessed light fixture, 5 x LED 0,12W
Product inquiry

Technical data

Colour of light:WhiteColour rendering index (CRI/Ra):80-89
Colour temperature:6000 KCover material:Glass matt/satinised
Degree of protection (IP):IP67Drive-over:yes

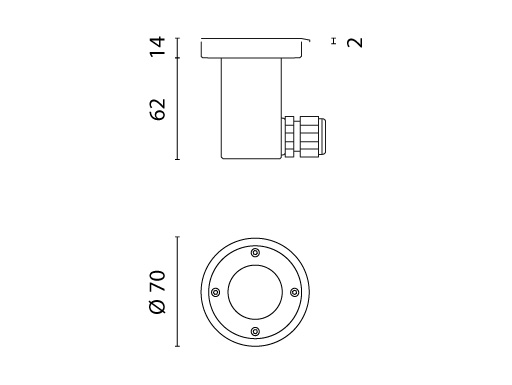

Height/depth:76 mmHousing colour:Stainless steel
Housing material:Stainless steelImpact resistance (IK rating):IK09
Light distribution:SymmetricLight source included:yes
Max. load:2000Max. system power:0,6 W
Nominal current: mANominal voltage:220-240 V
Outer diameter:70 mmProtection class:I
Recess height/depth:74Suitable for lamp power:
Voltage type:ACWith control gear:yes
With dimming function:yes

Downloads

Product information

  • Assembly instructions
  • Catalog page

Images

  • Ambience picture

Photometric data

  • Photometric data IES
  • Photometric data LDT
  • Light distribution curve
Tender text

Accessories

Z-VERIP-L2

2 way connector

Z-VERIP-DLH2O

3/4 way connector
